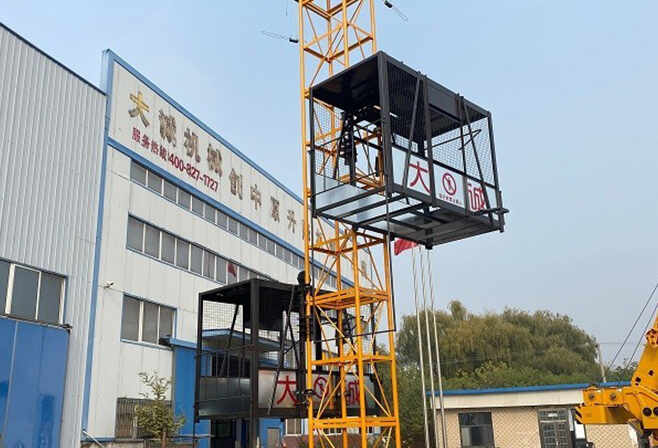

The SS120/120 material hoist is a wire rope-driven cargo vertical transportation equipment, driven by a winch. It features a novel structure, high performance and cost-effectiveness, and convenient installation. The machine is equipped with a full set of safety devices in line with national standards, ensuring safe and reliable use. It can meet the requirements for vertical material lifting in various industrial and civil buildings, as well as construction of high bridge piers for railways and highways. The product is manufactured by one of the first factories awarded the special equipment manufacturing license in China, serving as a new replacement for the old-fashioned gantry hoist.

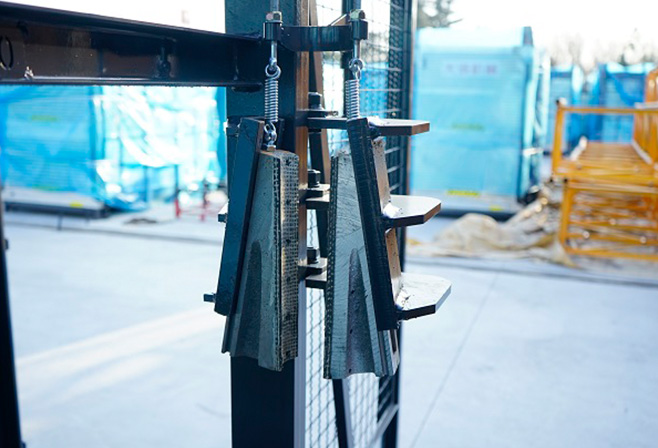

Progressive Anti-fall and Rope-breaking Safety Protection Structure The machine adopts a progressive anti-fall and rope-breaking safety protection structure. In case of accidental wire rope breakage of the cage, the anti-fall safety protection mechanism will instantly clamp the cage onto the pipe without any component damage. The greater the weight, the greater the braking force.
This device can clamp the channel steel of the standard section to prevent the cage from sliding, providing an additional safety guarantee.

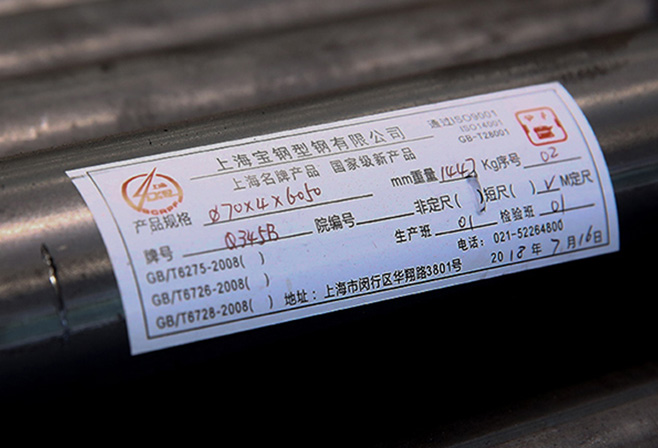

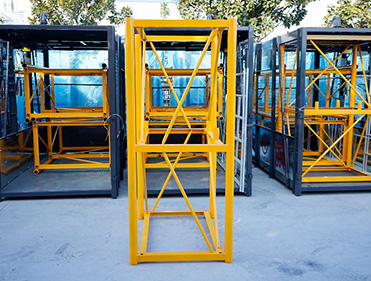

Reasonable design, convenient disassembly and assembly, stable performance, safety, reliability, and high work efficiency. The main chords of the standard sections are made of high-quality welded steel pipes, the same material as that of construction elevators, featuring high strength, good interchangeability, and long service life.

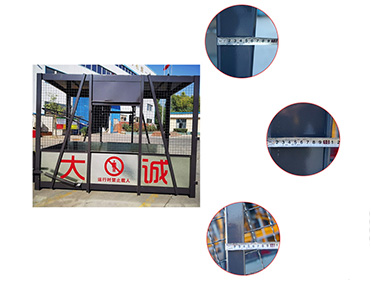

With strict processing and production procedures, the door edge adopts Anyang Steel 4mm material and a 4-fold bending process, ensuring the cage is more solid, guaranteeing quality, and reducing equipment maintenance rates.

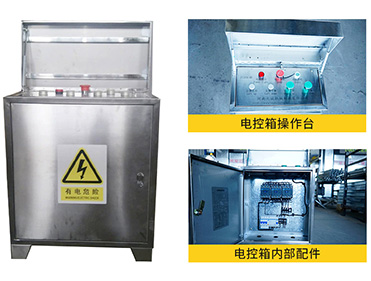

The electric control box is made of high-quality 304 stainless steel and designed with a rainproof groove device, which is more user-friendly, ensuring no water enters the electric control area and guaranteeing the normal use of the product.

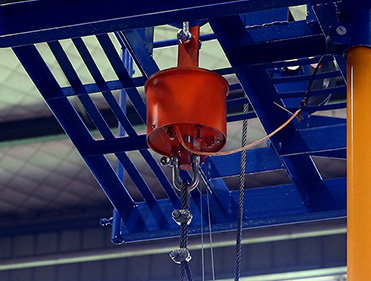

The mate.rial hoist is equipped with anti-fall and rope-breaking safety protection mechanisms, floor stopping safety mechanisms, multifunctional safety protection mechanisms, etc., with complete configurations. It has functions such as anti-overrunning, anti-fall, and upper and lower limit switches, avoiding potential safety hazards during construction.
Electric control box using high-quality 304 stainless steel, and the design of rain-proof groove device, more humane, to ensure that the electric control department will not water, to ensure the normal use of products.
|
Technical Performance |
Unit |
SS120/120 Parameters |
|
Rated Load Capacity |
kg |
1200*2 |
|
Cage Size (L×W×H) |
m |
3×1.5×2 |
|
Basic Height |
m |
24 |
|
Maximum Height |
m |
100 |
|
Standard Section Height |
m |
2 |
|
Standard Section Section |
m |
1.2×0.87 |
|
Crane Rated Lifting Capacity |
kg |
120 |
|
Distance from Base Center to Wall |
mm |
1700-2000 |
|
Free Height at Top of Guide Frame Attachment |
m |
≤6 |
|
Guide Frame Attachment Spacing |
m |
6-8 |
|
First Wall Attachment of Guide Frame |
m |
6-8 |
|
Lifting Speed |
m/min |
≤40 |
|
|
|
Henan Dacheng Machinery Manufacturing Co., Ltd. has constructed a large-span steel structure factory building in accordance with international standards. The factory features excellent lighting, a well-planned layout, and complete production equipment, including over 200 sets of large and medium-sized production machinery. This includes internationally advanced precision equipment such as robotic welding assembly lines, fully automated painting production lines, CNC high-precision gantry machining centers, CNC laser cutting machines, CNC shearing machines, CNC bending machines, CNC plasma cutting machines, and stamping equipment production lines. The tooling equipment and high-precision debugging platforms are at the forefront of domestic industry standards, enabling mass production capabilities.
Each construction elevator of our company must undergo professional debugging on a dedicated testing platform 1 Adjustment: Adjust the clearances of various rollers, gears, backrest wheels, etc. 2. No-load Full Machine Test: The elevator shall operate with the cage rising and descending the full test height for 300 cycles. The cage must start and stop normally, run smoothly, and produce no abnormal noises. 3. Rated Load Test for the Entire Machine: Load the elevator with the rated capacity, and operate the cage smoothly over the full test height for 150 cycles. The cage must run smoothly, with normal start-up and braking, and no abnormal noises. 4 Rated Load Fall Protection Test: Perform a fall protection test by activating the fall protection operation button. The braking distance of the hoist cage should be maintained between 0.25-1.2 meters. During the fall protection test, when the fall safety device activates, the main electrical circuit and the brake circuit should be automatically disconnected.
The elevator equipment produced by our factory has been exported to various countries including Russia, North Korea, Australia, Indonesia, Iraq, the Philippines, Vietnam, Myanmar, Thailand, Rwanda, Argentina, the Democratic Republic of the Congo, Zambia, the United Arab Emirates, Cameroon, Brunei, Lesotho, Uruguay, Tajikistan, Uzbekistan, Kazakhstan, Kyrgyzstan, Ethiopia, Papua New Guinea, Honduras, Bolivia, Belize, Sri Lanka, Maldives, Bangladesh, Armenia, Romania, Nigeria, the Dominican Republic, Kuwait, Outer Mongolia, West Africa Guinea, Madagascar, Senegal, Georgia, Mozambique, etc.
Establish specialized one-on-one customer service and after-sales maintenance reminder services; The after-sales service team conducts regular video follow ups on the usage of the equipment. Be considerate of customers, save them money, and make them worry free! While choosing Dacheng products, you will also enjoy professional services Our team provides you with comprehensive technical support.
