I. Product Features
High Efficiency: The SS120 construction hoist adopts a high-speed traction drive system with a rated lifting speed of ≤40m/min, significantly improving material transportation efficiency.
Large Load Capacity: The hoist is designed with a rated load of 1200KG and can be erected to a height of 100 meters, suitable for various high-rise construction needs.
High Safety: It uses a winch operation to prevent cage overrun accidents. It is equipped with a vertical steel wire rope load and a self-developed progressive fall arrester that meets national standards, improving the safety performance of the material hoist. Additionally, the equipment has functions such as automatic floor stopping, height limitation setting, and floor door alarm to ensure safety during use.
Reasonable Structure: The rivet connection plate design facilitates frame installation and disassembly. It is energy-saving and has a small footprint, improving the utilization rate of the construction site.
II. Structural Composition
The SS120 construction hoist mainly consists of the following parts:

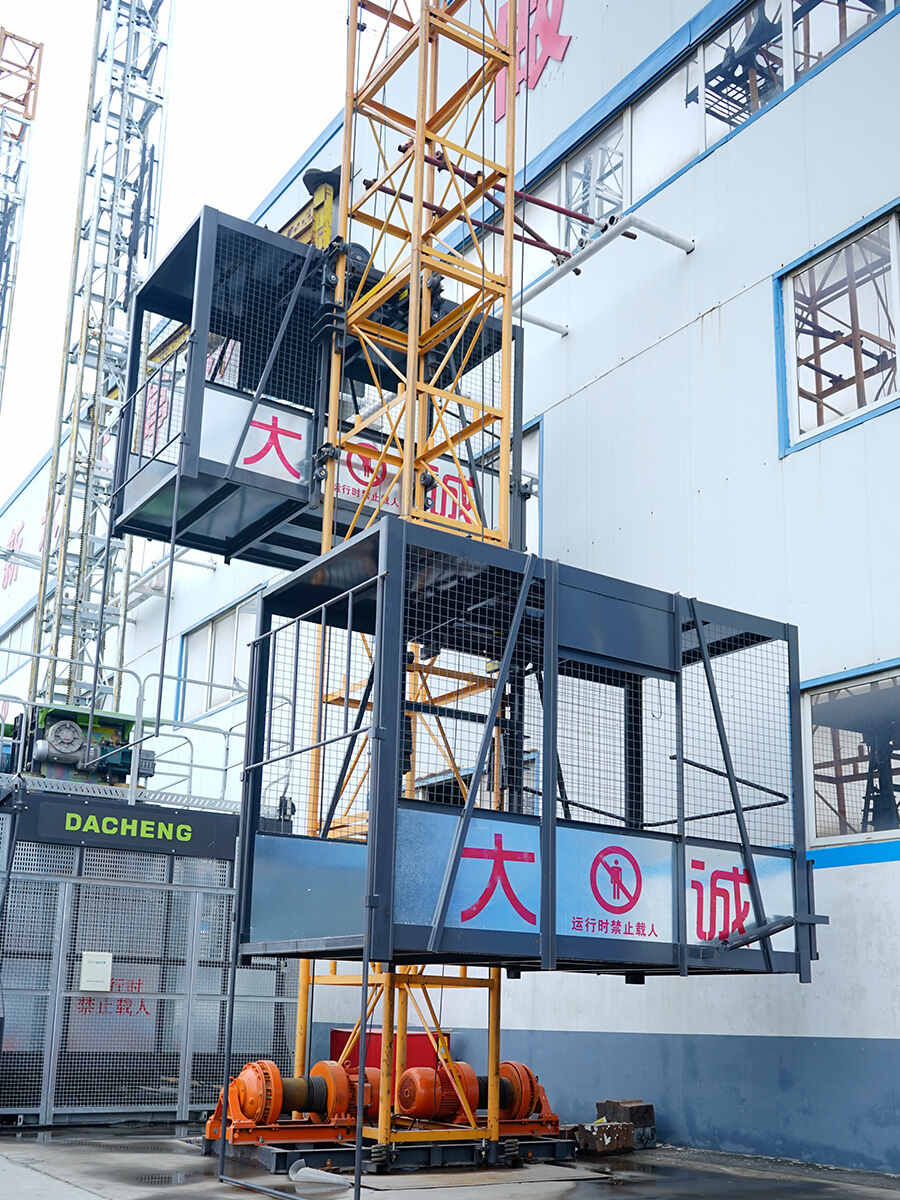

Two cages: Independent operation of dual cages, high productivity, and large loading space.
Top beam: Located at the top of the hoist, playing a supporting and fixing role.
Guide rail frame: Ensures the stability and smoothness of the hoist during lifting and lowering.
Base: Supports the weight of the entire hoist and connects to the guide rail frame.
Lifting winch: Drives the movement of the steel wire rope to make the hoist move up and down.
III. Working Principle
The working principle of the SS120 construction hoist is mainly to drive the movement of the steel wire rope through an electric motor, thereby driving the lifting and lowering of the cage. During the lifting process, the guide rail frame and base ensure the stability and smoothness of the hoist. Meanwhile, safety devices such as the winch and steel wire rope load ensure the hoist’s safety performance.
